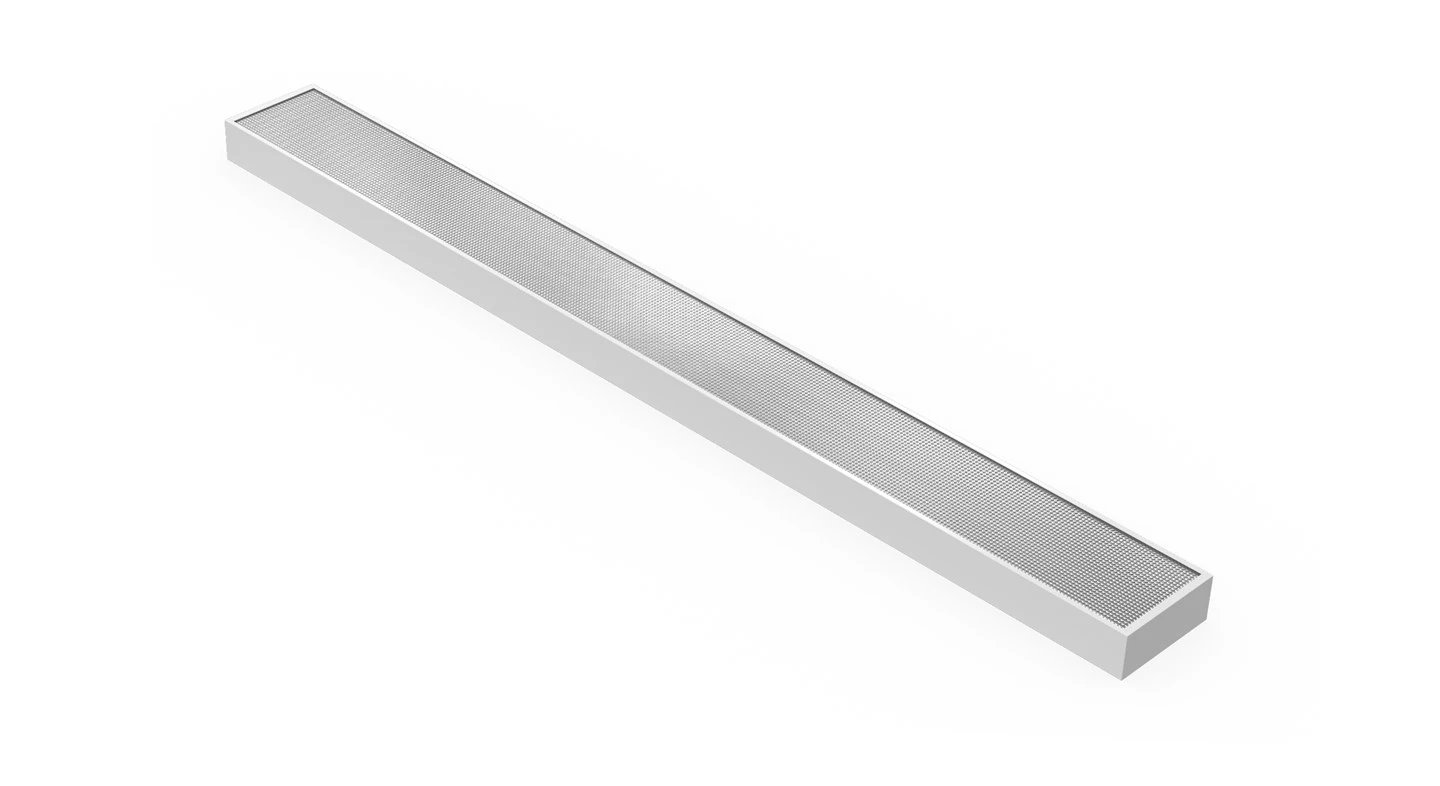

Brighton UGR Umucyo

Brighton UGR Umucyo

Ibisobanuro:

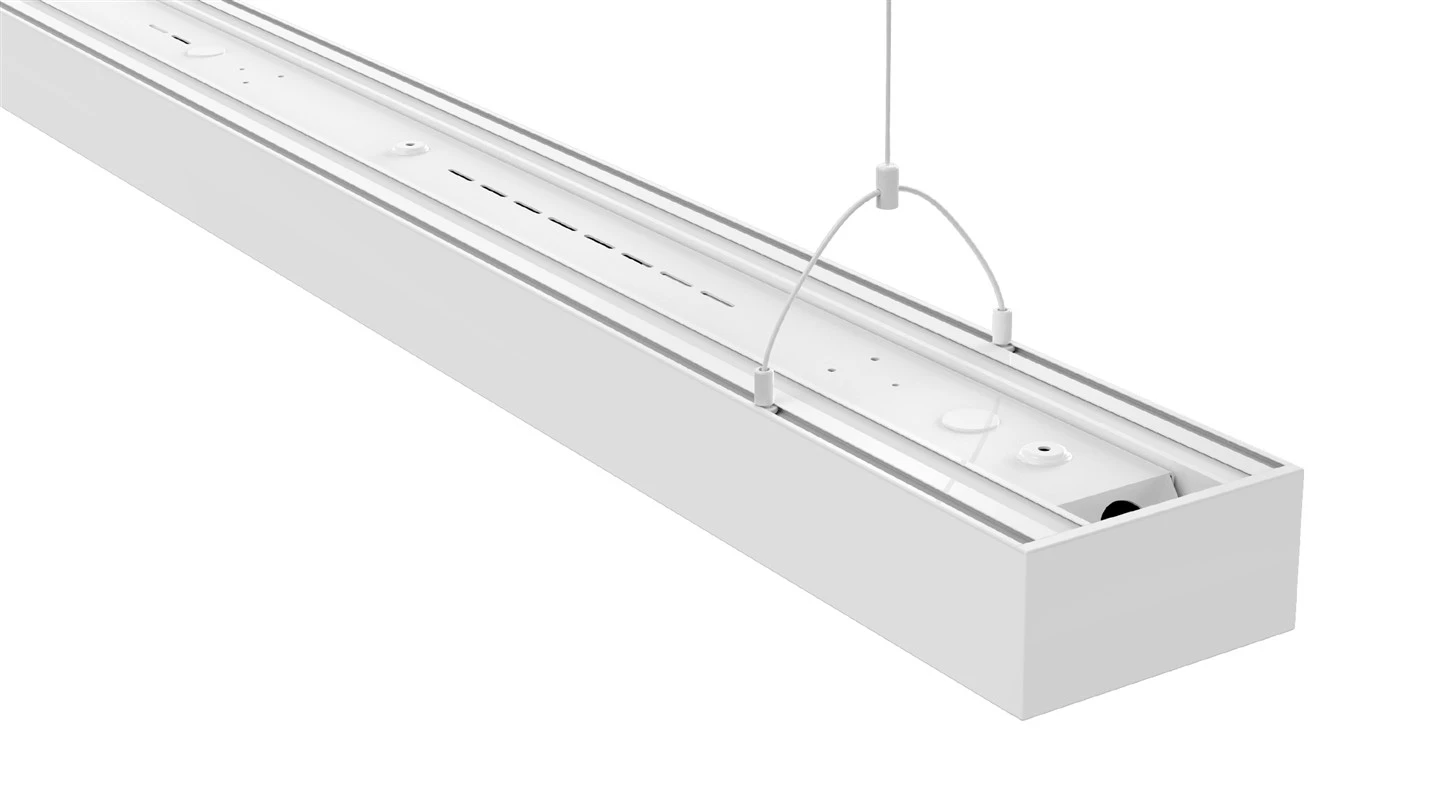

Brighton battens urumuri nuburyo bushya, butuzuza gusa UGR optique<19, but also use more costive design solution. Brighton battens lamp use the prismatic diffuser the optical material, and also use high-power LED and secondary lens as the light source. Brighton batten uses a back towed junction box for drivers and components installation,and also, the junction box acts as a installation box for the lighting unit. The Junction box can withstand up to four times weight of the lighting unit, which not only provides effective quality insurance, but also makes the product easy for installation.









Ibiranga:

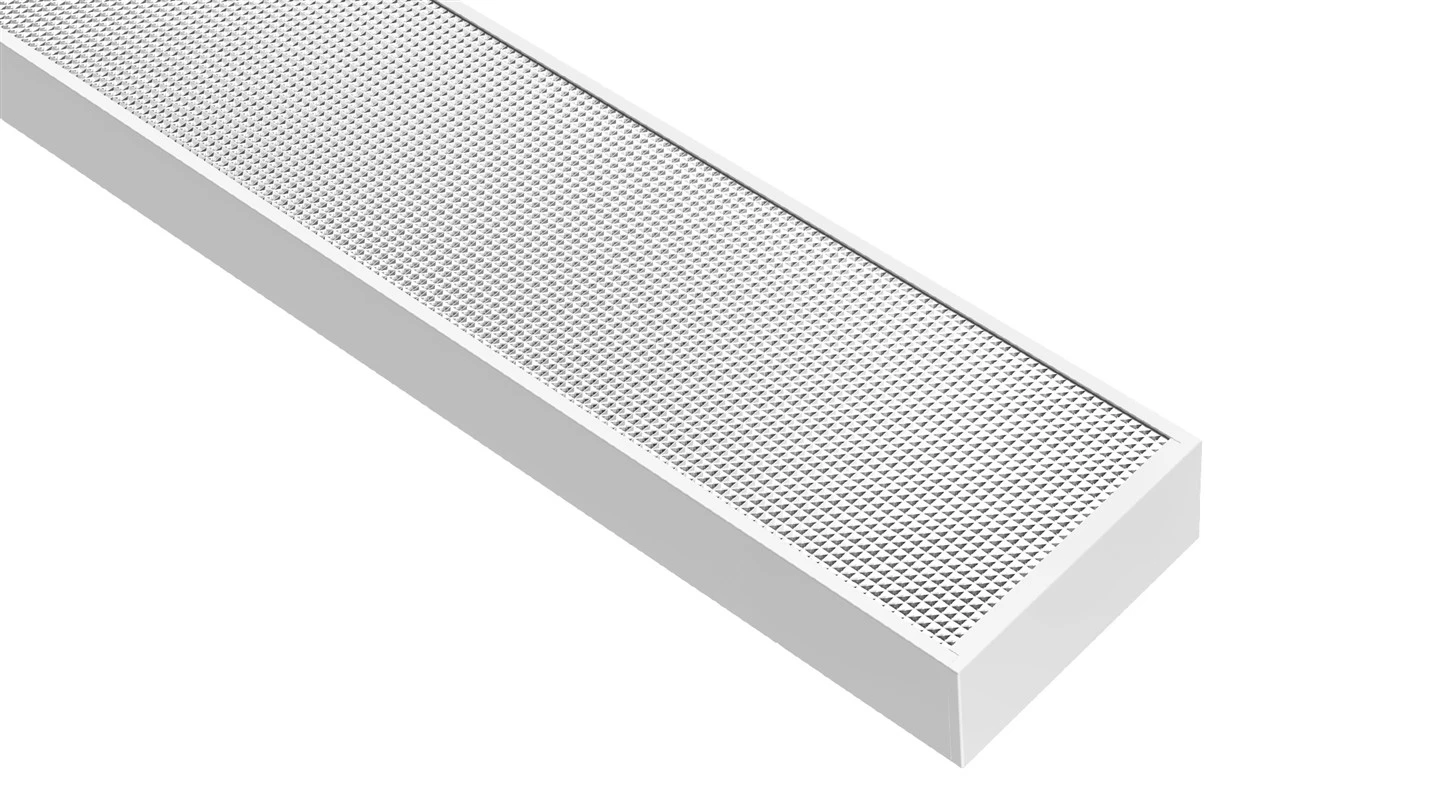

>UGR<19 with prismatic diffuser

>Imbaraga na CCT zifungura umushoferi wa LED

>120mm|Ubugari bwa 150mm burahari

>Ra80 cyangwa Ra90, SDCM<3

>UP urumuri @ burigihe 2X4W nkuburyo bwo guhitamo

>Kurangiza cyangwa inyuma besa kugirango winjire

>Ibikorwa bitandukanye bitandukanye nkamahitamo

>4ft / 5ft / 6ft igipimo kirahari

>Byakiriwe / Ubuso bwububiko / Kwishyiriraho

>Garanti yimyaka 5

Send Inquiry
Download
Description
Technical Parameters

IRIBURIRO:

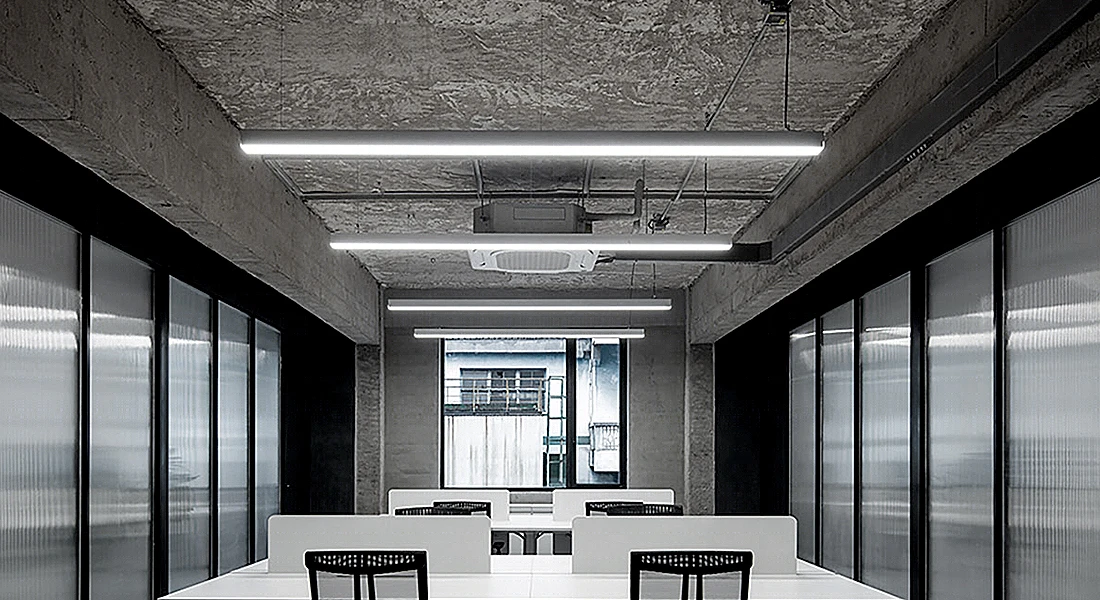

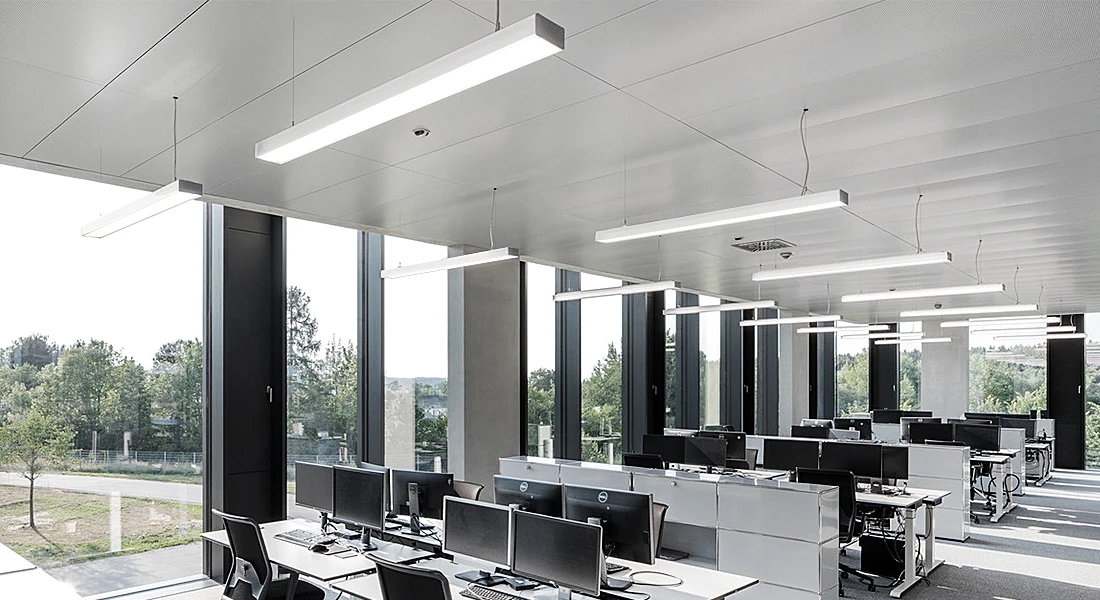

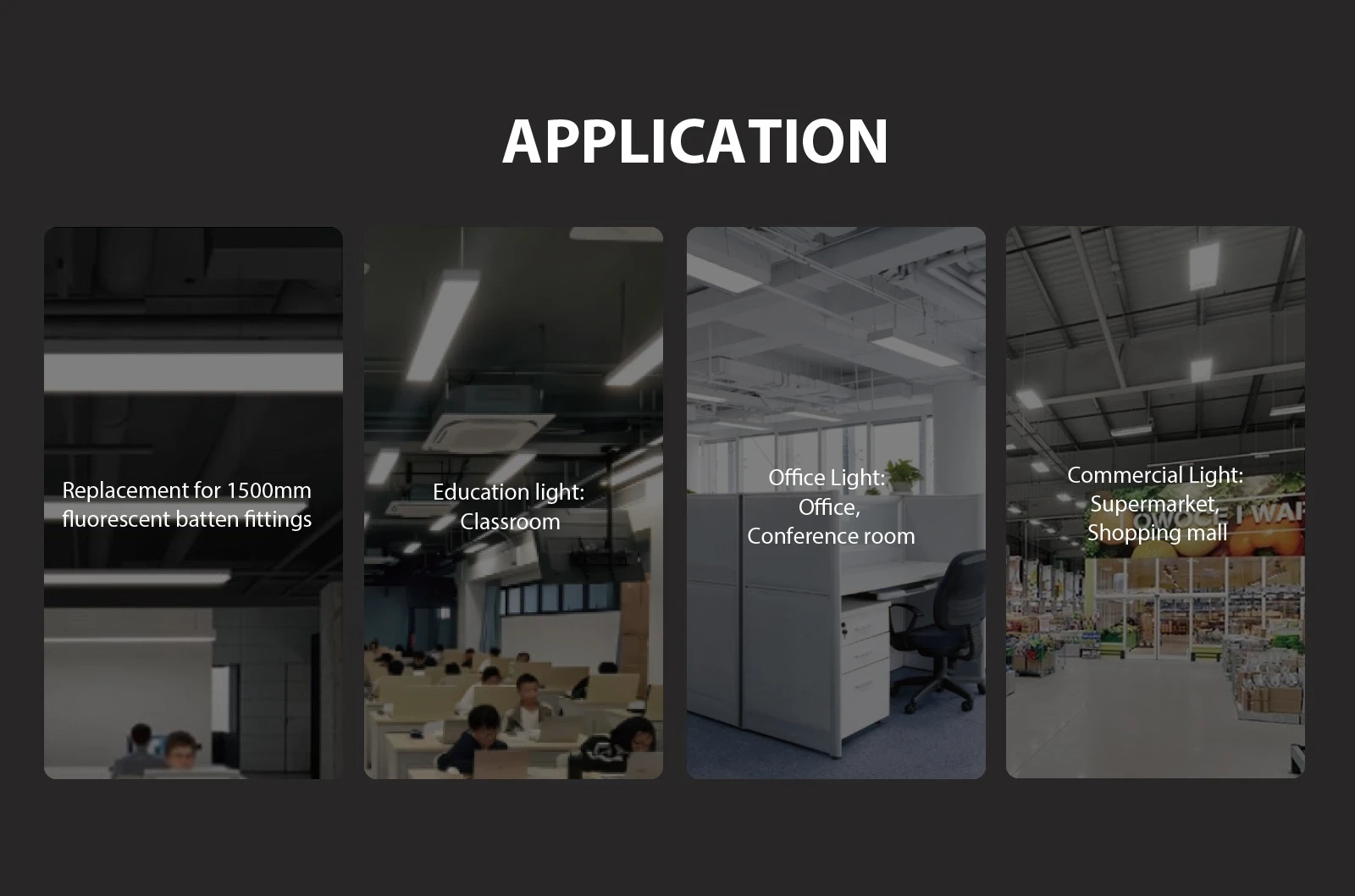

Amatara ya Brighton Batten LED atanga mm 120, ubugari bwa mm 150 nkuburyo bwo guhitamo, UGR<19, and wattage and CCT switches as standard features of strip lights. Brighton battens led light are widely used by customers in office, commercial, education, and other applications.



UMUTUNGO:

Brighton UGR Batten 150mm ni urumuri rwanyuma ruheruka, rwakozwe mubikorwa byiza kandi byoroshye. Hamwe n'ubugari bwa 150mm, urumuri ruhuza nta mwanya mu mwanya uwo ari wo wose kandi rufite urumuri ruto (UGR)<19. Its advanced LED driver features a power and CCT switch, allowing you to customize brightness and warmth to suit your needs. Our LED strip lights are perfect for a variety of applications, from office/commercial/industrial to campuses, blending technology with stylish design.



Kode y'itegeko

Ubugari

Imbaraga zagereranijwe

LM / W.

Lumen

SDCM / Ra

Watt / CCT
Hindura

Igipimo cy'ibicuruzwa

GW / CTN

QTY / CTN

BT500 - 04W-DT1-40F01

120mm

20W/40W

andika.130

andika.2600 / 5200

<3 / Ra80/90

Y

L1200xW120xH60

8.84kg

4pc

BT500 - 05W-DT1-50F01

120mm

30/50W

andika.130

andika.3900 / 6500

<3 / Ra80/90

Y

L1500xW120xH60

11.12kg

4pc

BT500 - 06W-DT1-60F01

120mm

30/60W

andika.130

andika.3900 / 7800

<3 / Ra80/90

Y

L1800xW120xH60

14.52kg

4pc

BT510 - 04W-DT1-40F01

150mm

20/40W

andika.130

andika.2600 / 5200

<3 / Ra80/90

Y

L1200xW150xH60

11.12kg

4pc

BT510 - 05W-DT1-50F01

150mm

25/50W

andika.130

andika.3900 / 6500

<3 / Ra80/90

Y

L1500xW150xH60

13.40kg

4pc

BT510 - 06W-DT1-60F01

150mm

30/60W

andika.130

andika.3900 / 7800

<3 / Ra80/90

Y

L1800xW150xH60

16.80kg

4pc



Brighton 01

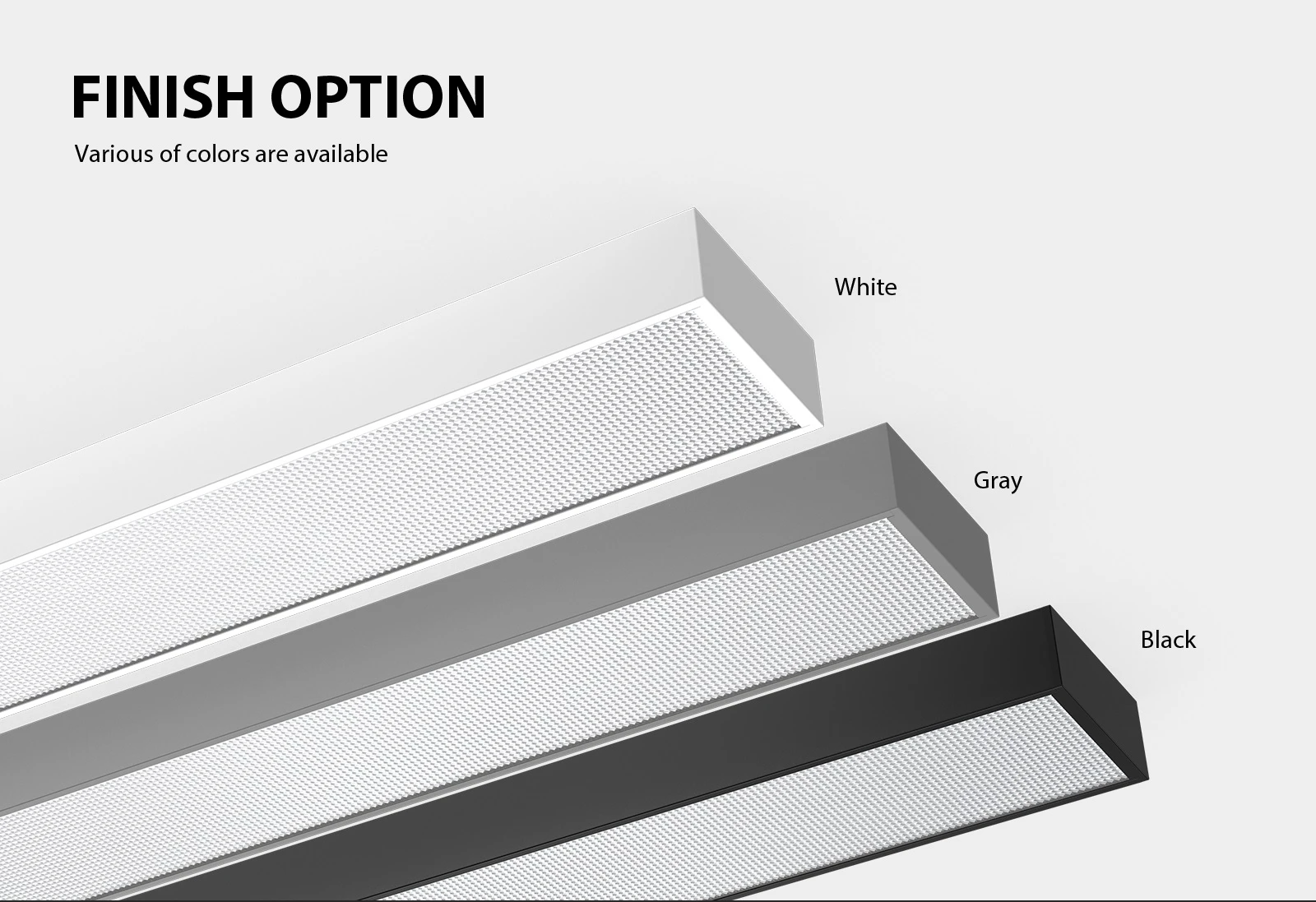

Brighton 02

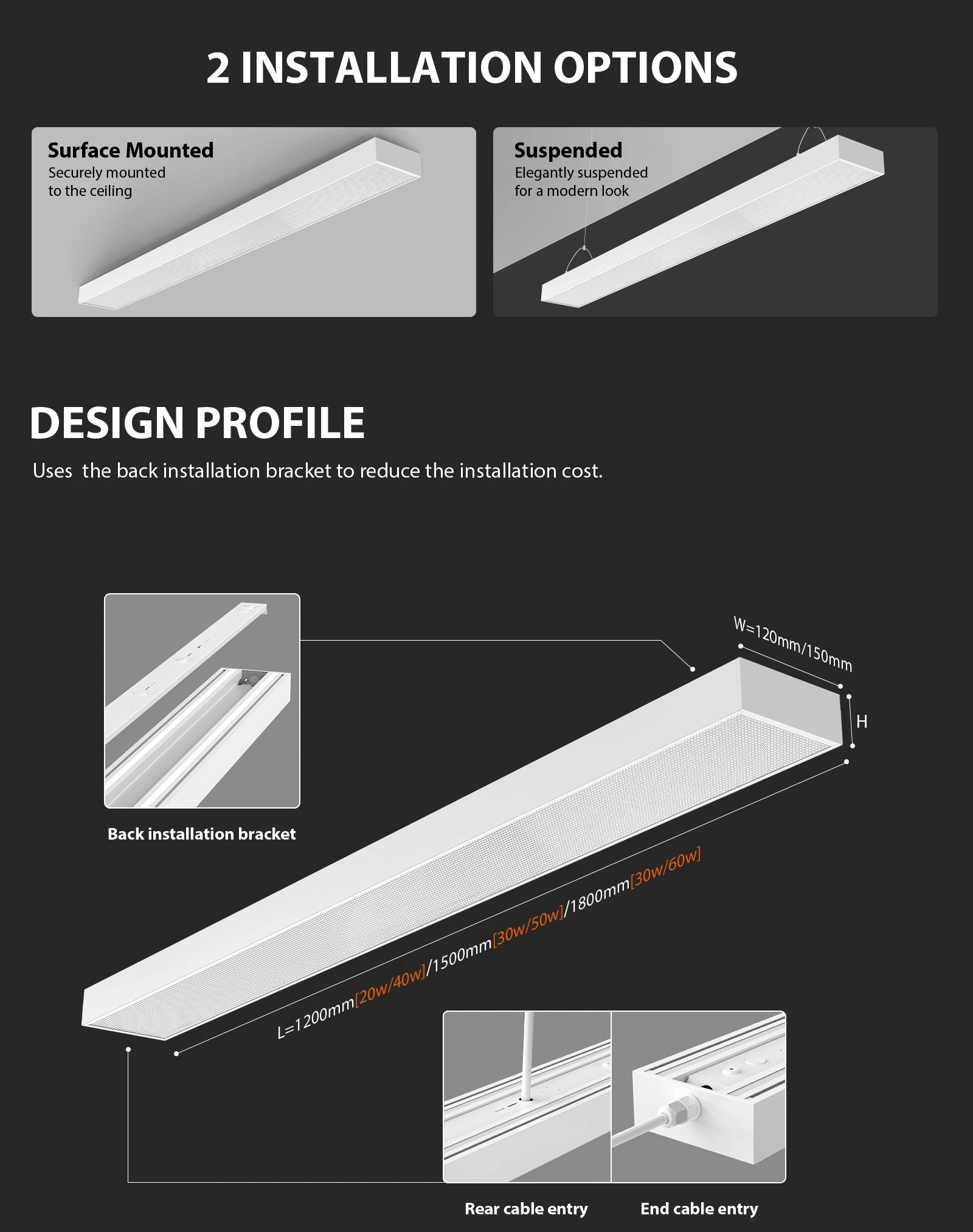

Brighton 03

Brighton 04

Brighton 01

Brighton 02

Brighton 03

Brighton 04
