IRIBURIRO:

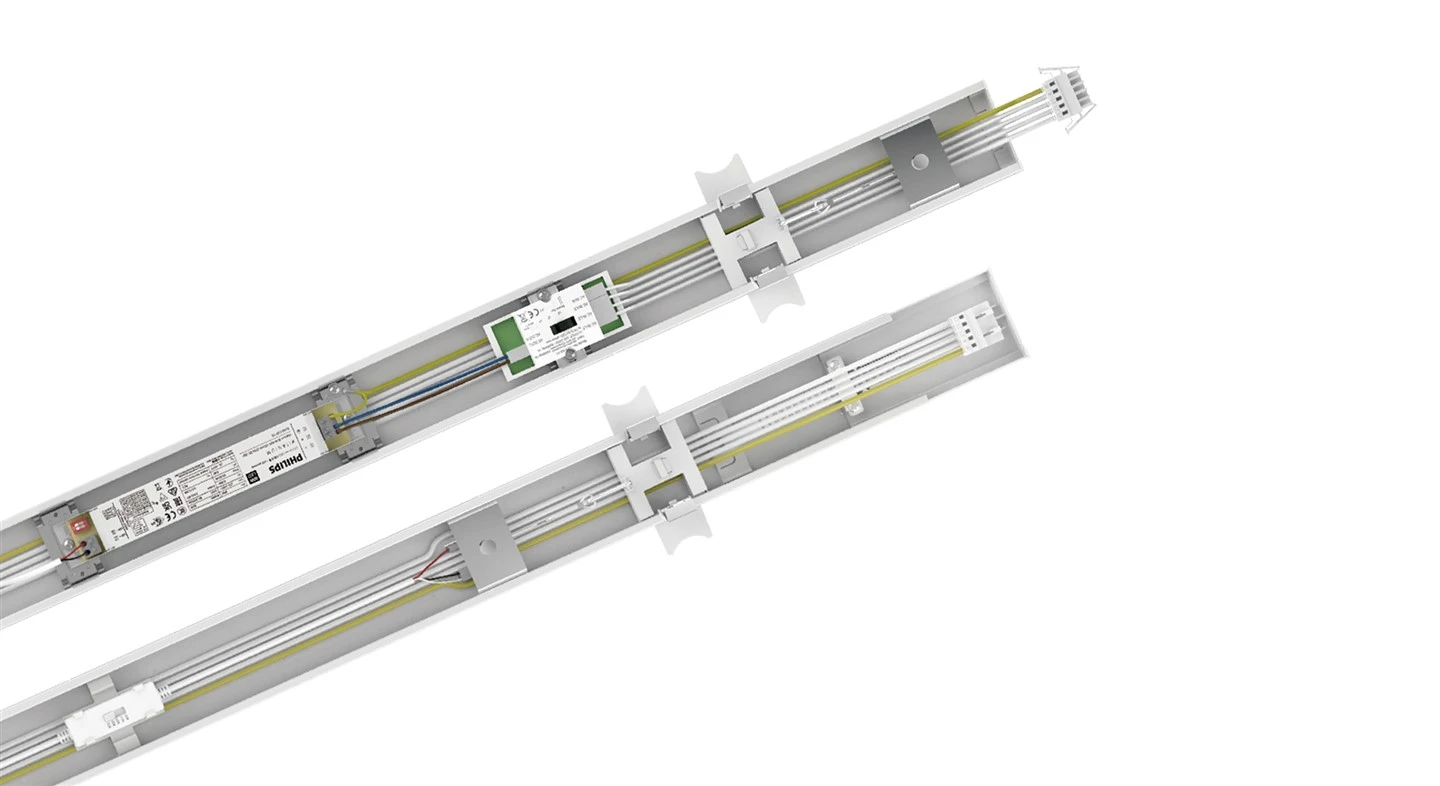

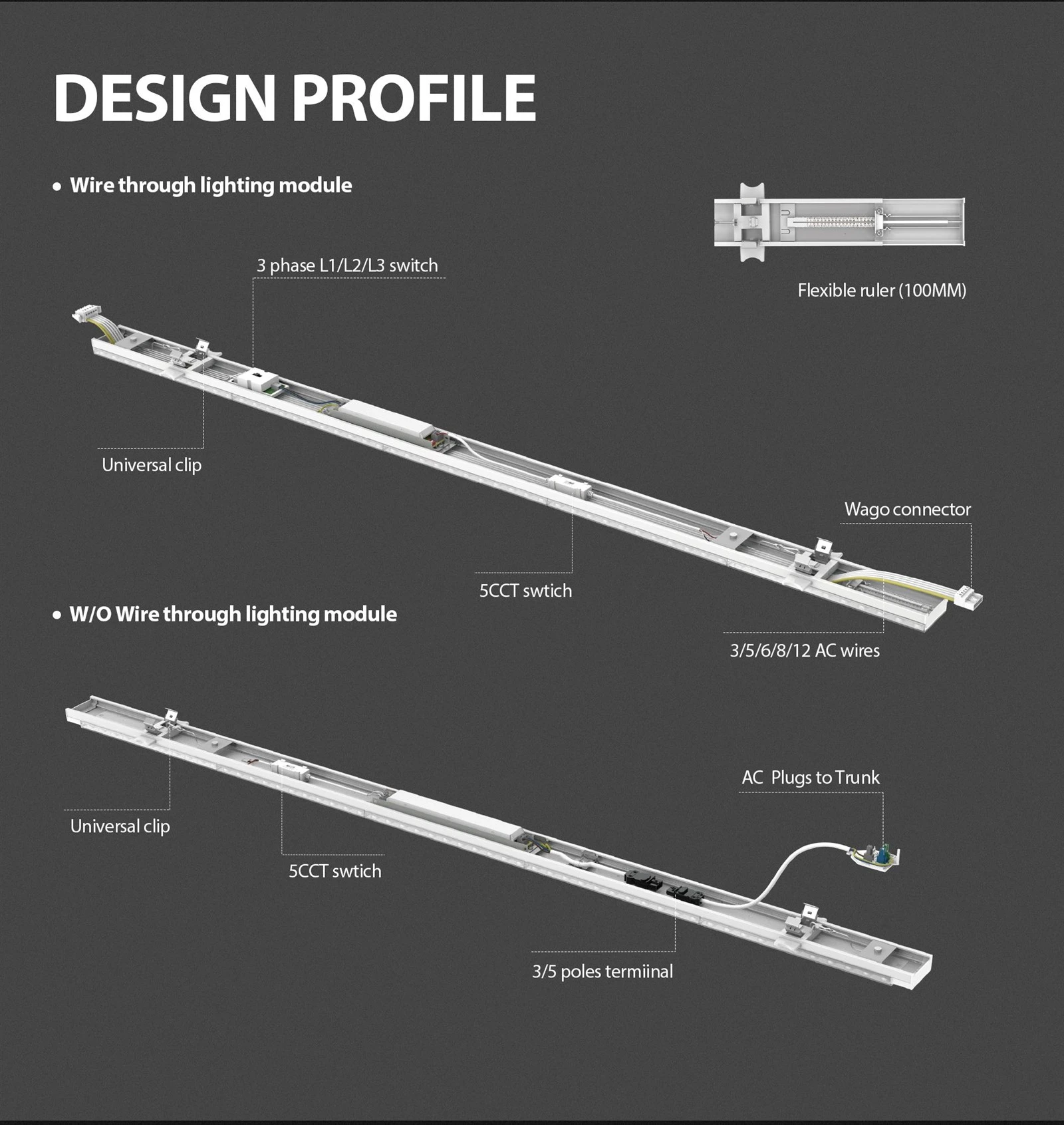

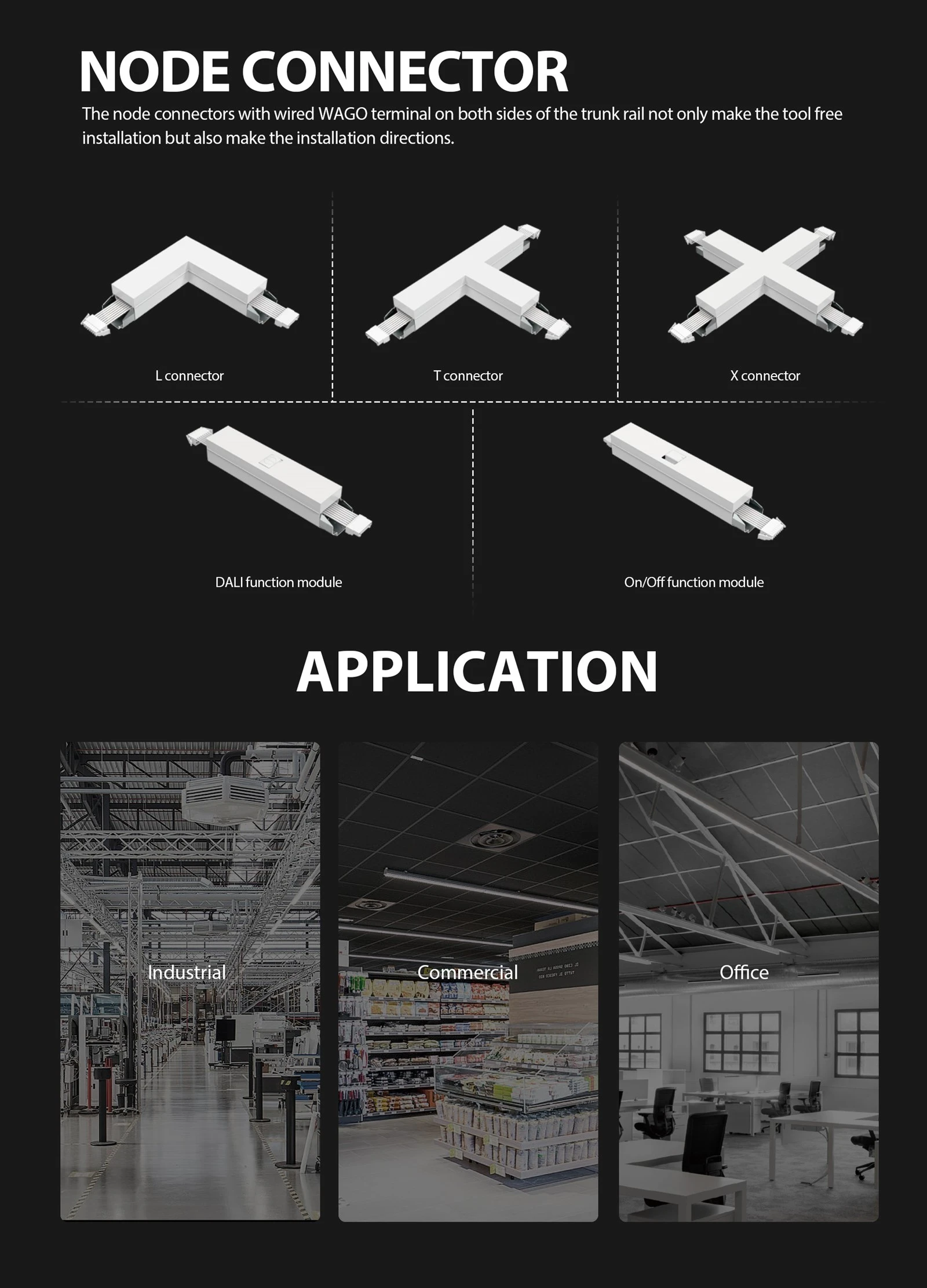

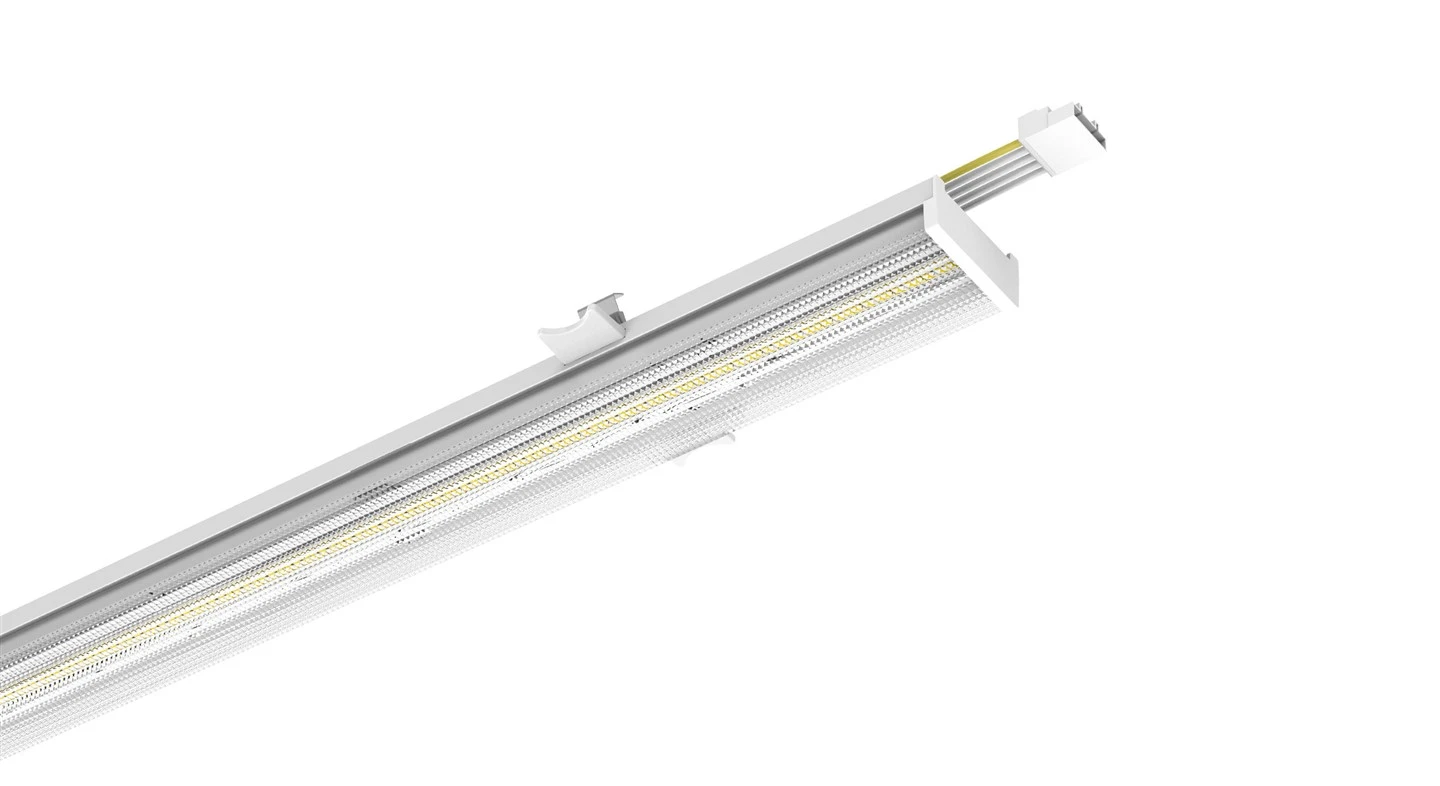

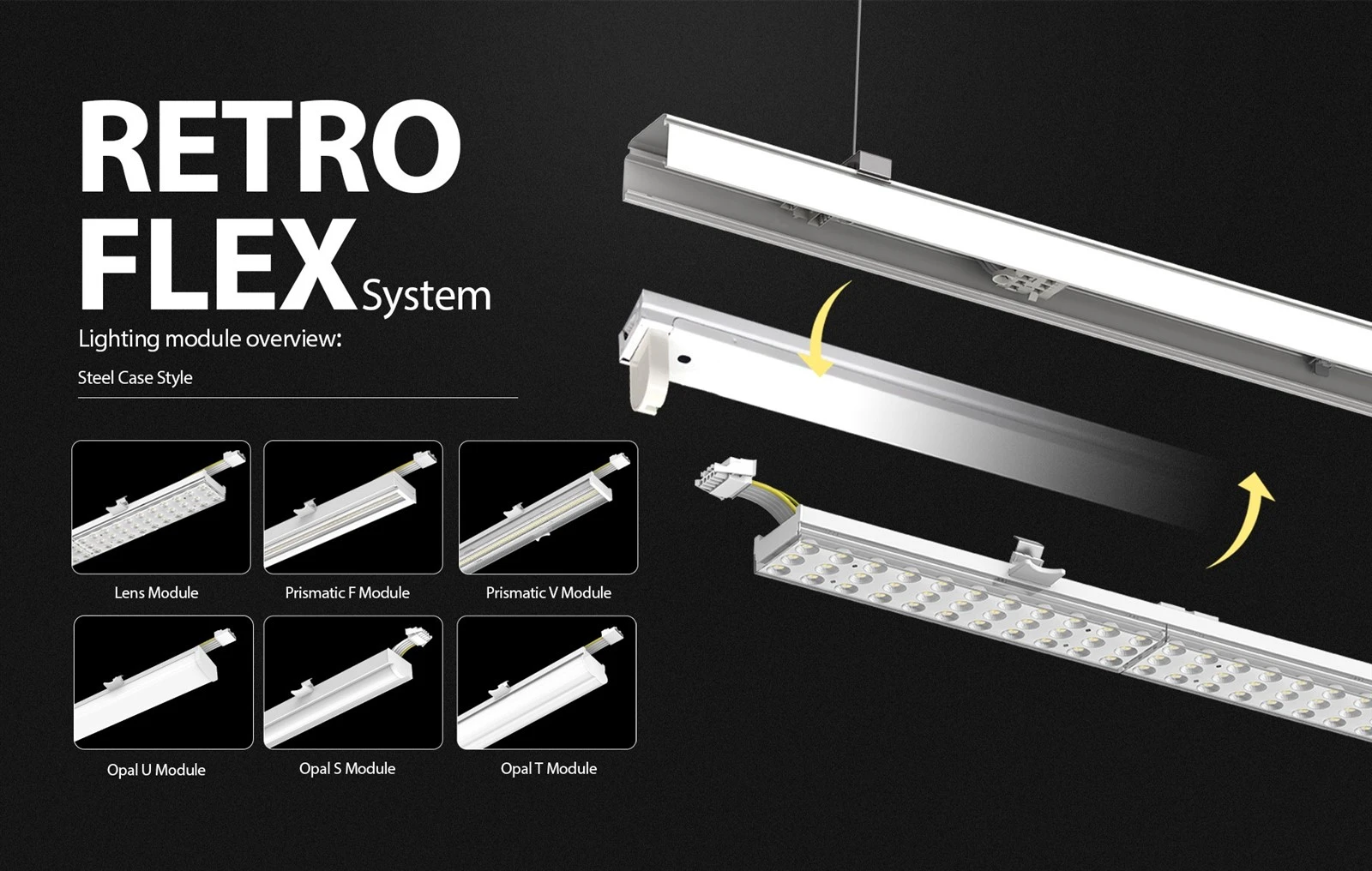

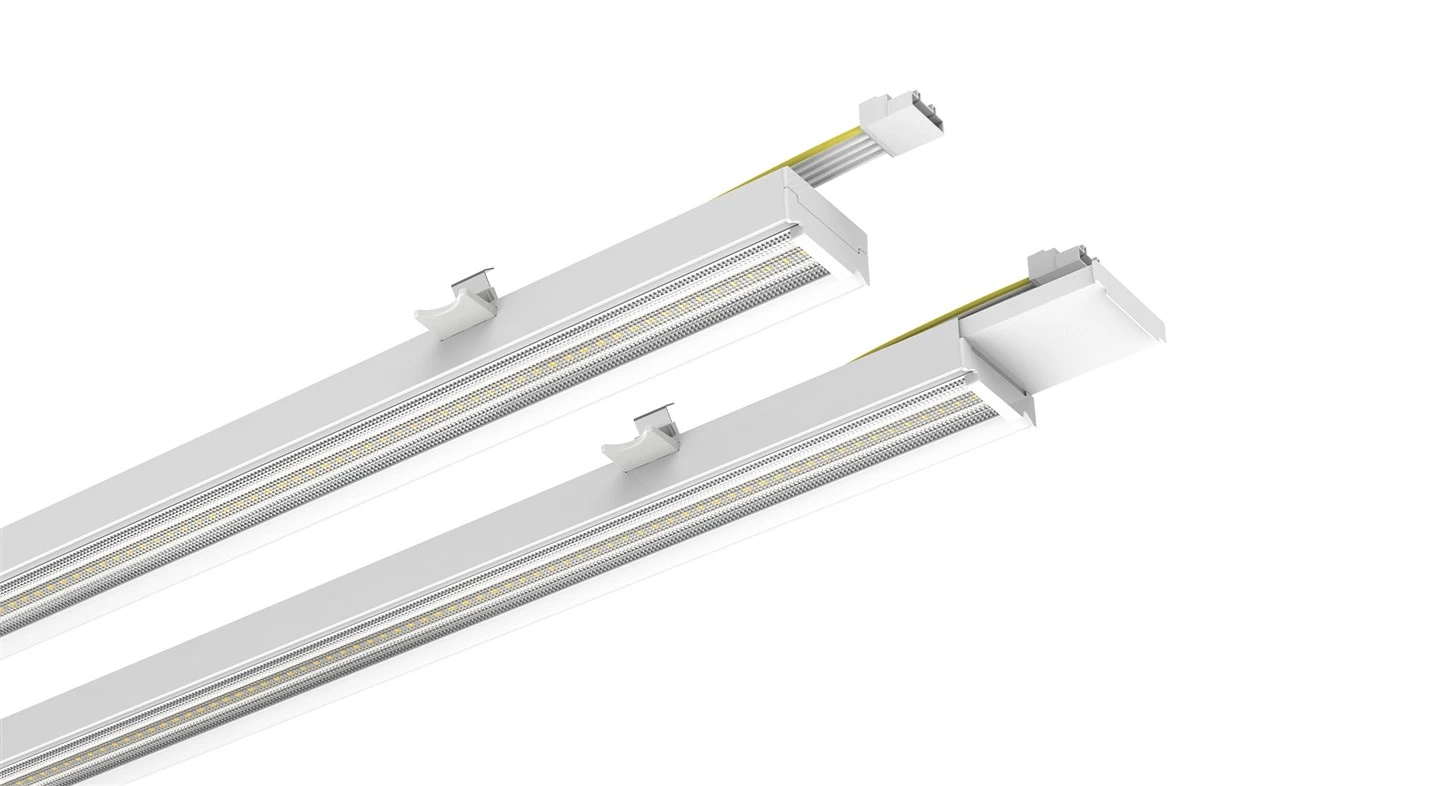

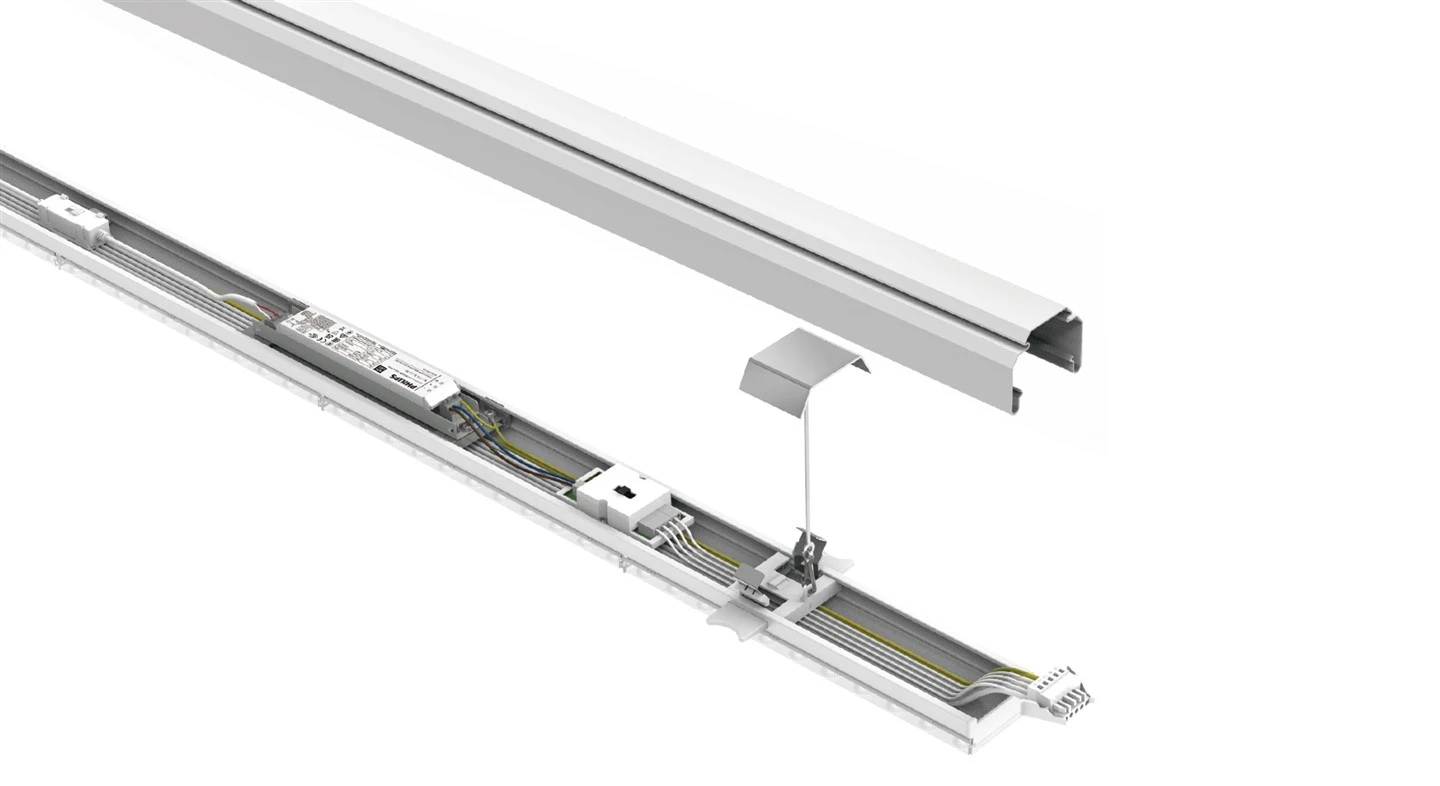

Retro Flex izanye hamwe na pre - insinga zihuza insinga, bigatuma itigenga rwose kumugongo wubushakashatsi. Ihuza rya WAGO ritanga inzira yihuse kandi yoroshye yo guhuza module nyuma ya module. Byombi 5-wire kuri / off verisiyo kimwe na 7-wire dimming verisiyo iranga ibice 3 byumurongo wahinduwe kuri 400V kugirango ukore ibintu bitandukanye byo kwishyiriraho.
UMUTUNGO:

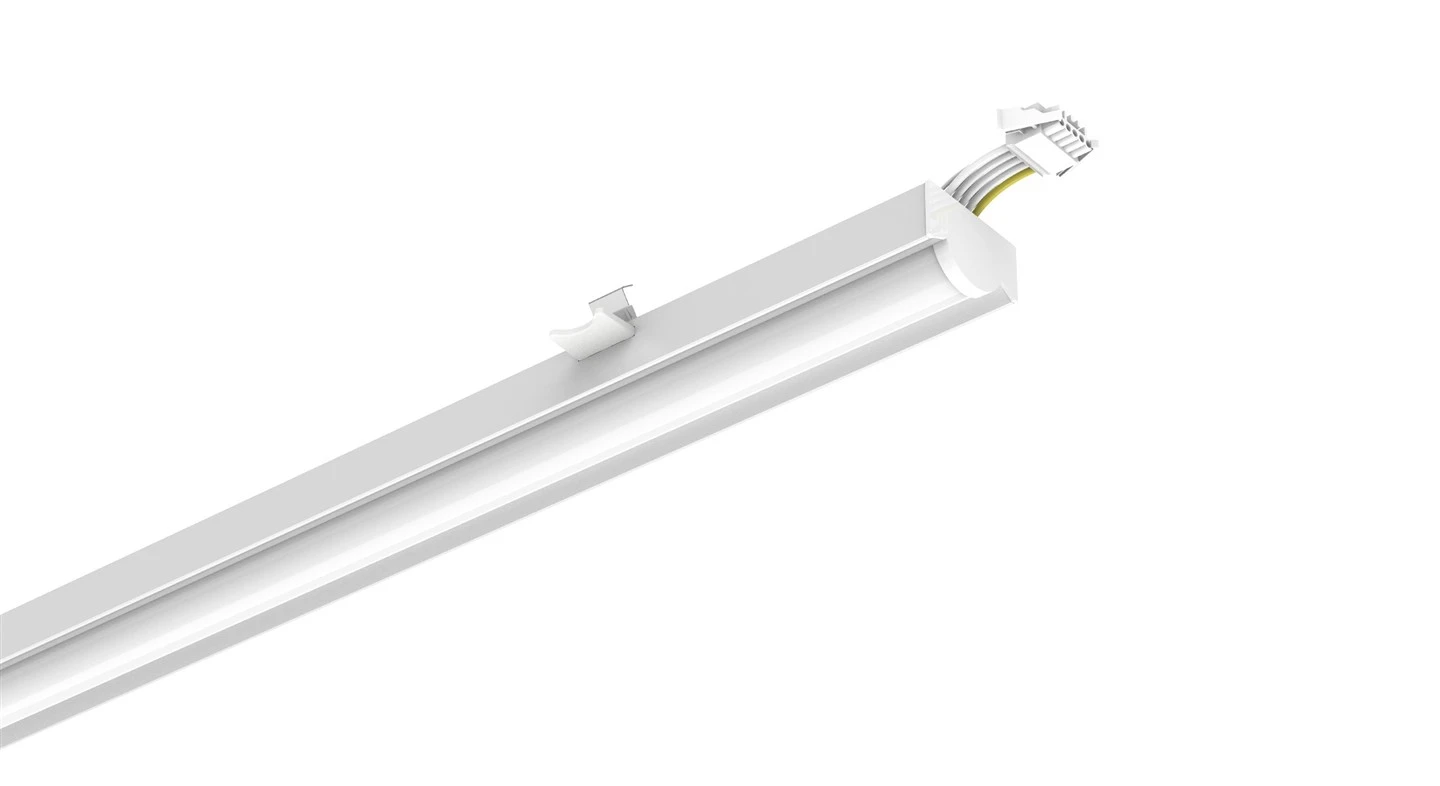

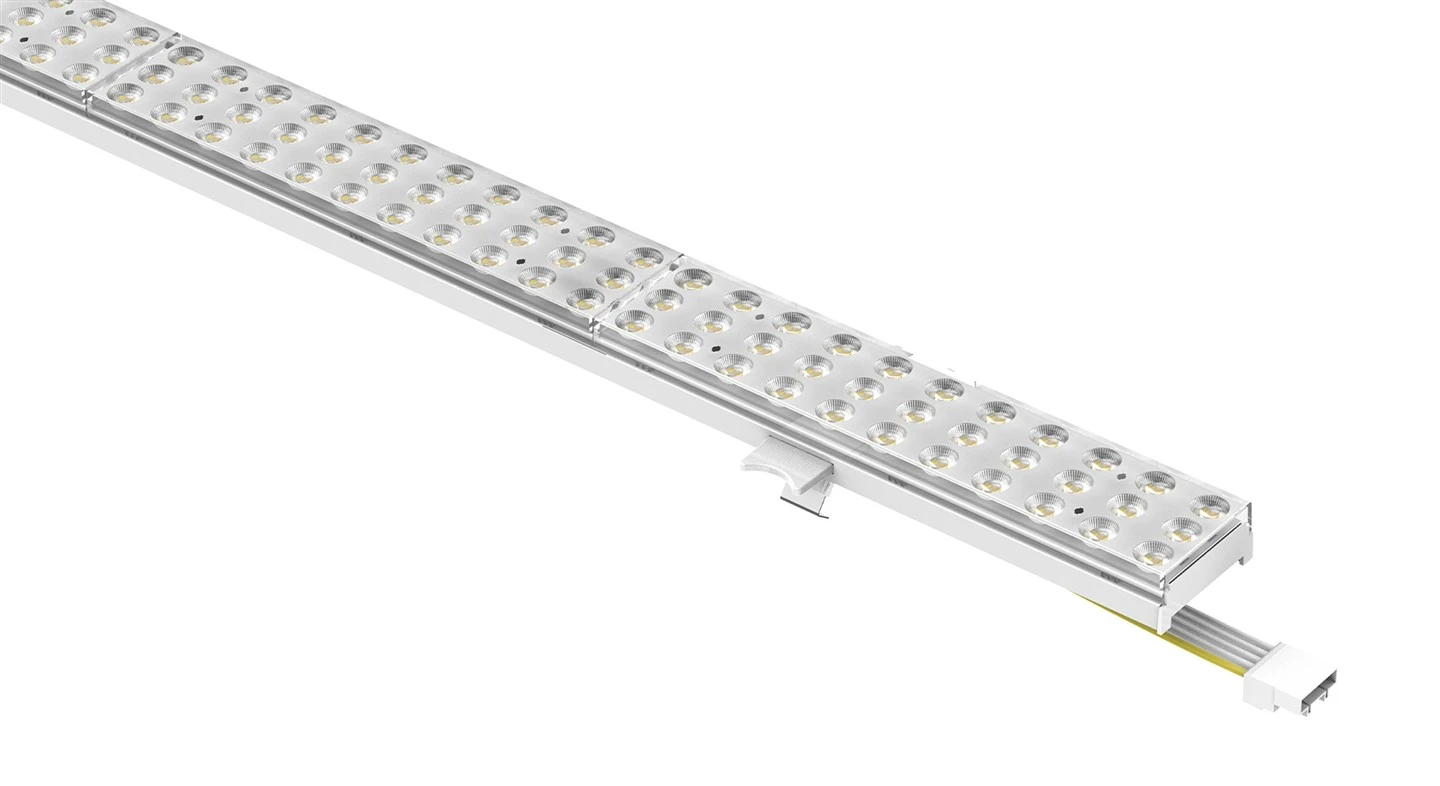

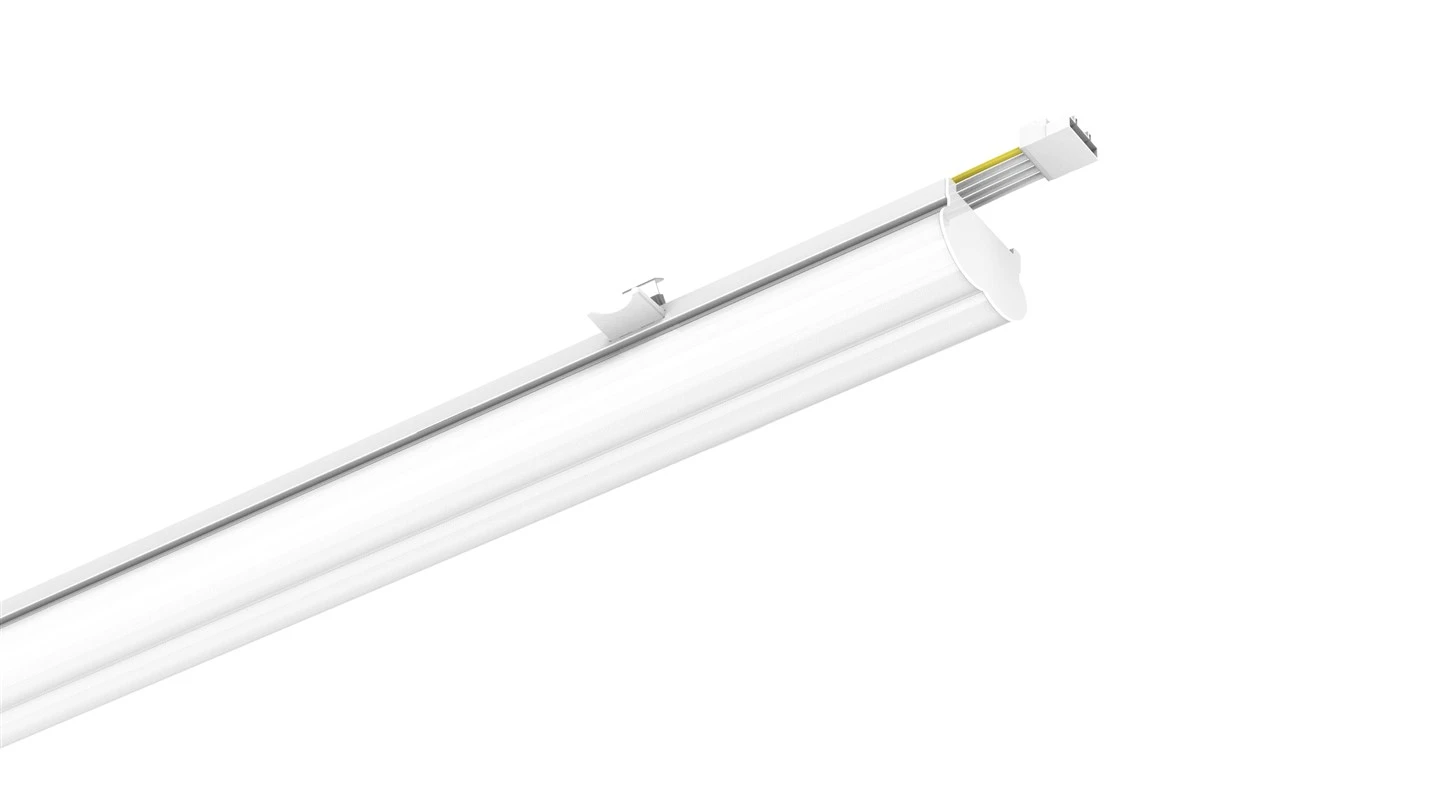

Retro Flex ije ifite clip yubwenge kuri LED module ishobora gushirwa mumasanduku gakondo yumucyo yibirango bitandukanye nka: Philips, Trilux, Zumtobel, Siteco, Ridi nibindi byinshi. Uburyo bworoshye kandi bwonyine - bushingiye kuri clamping sisitemu yemerera iyi module gushirwa kumurongo mugari wibisanduku.

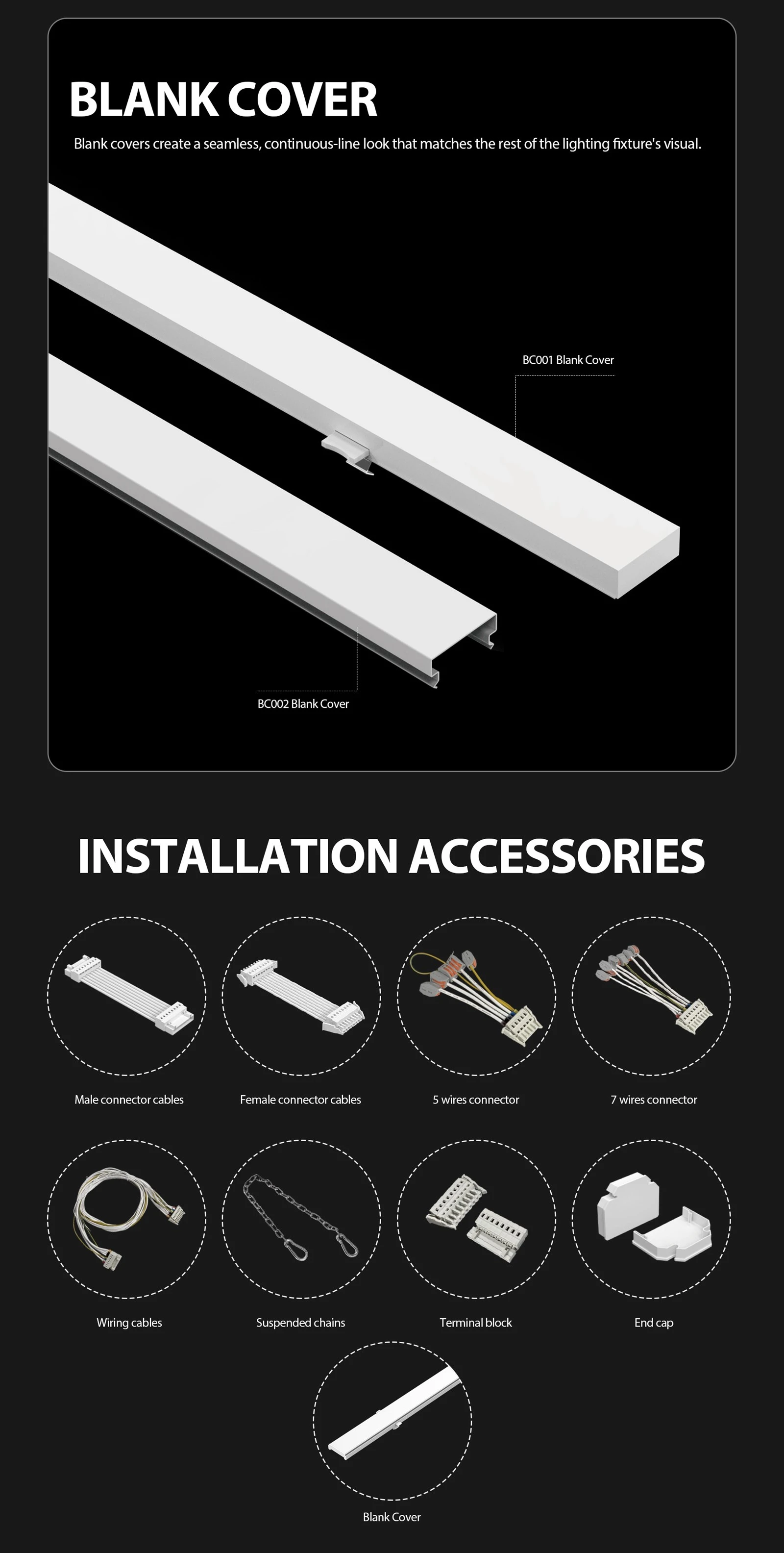

Ni irihe tandukaniro riri hagati y'umurongo wa fluorescent n'amatara ya LED? Retro Flex ije ifite uburyo bwayo bwa pre - insinga zihuza insinga, bigatuma itigenga rwose nigice cyashizwemo. Terminal ya WAGO itanga inzira yihuse kandi yoroshye yo guhuza module nindi.
|
Igipfukisho |
Kode y'itegeko |
Imbaraga zagereranijwe |
LM / W. |
Lumen |
SDCM / Ra |
Icyiciro cya IP |
Igipimo cy'ibicuruzwa |
GW / CTN |
QTY / CTN |
|
Lens optique |
RF100 - 05W-DT1-75F01 |
20-75W |
Ubwoko.180 |
Ubwoko.4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |

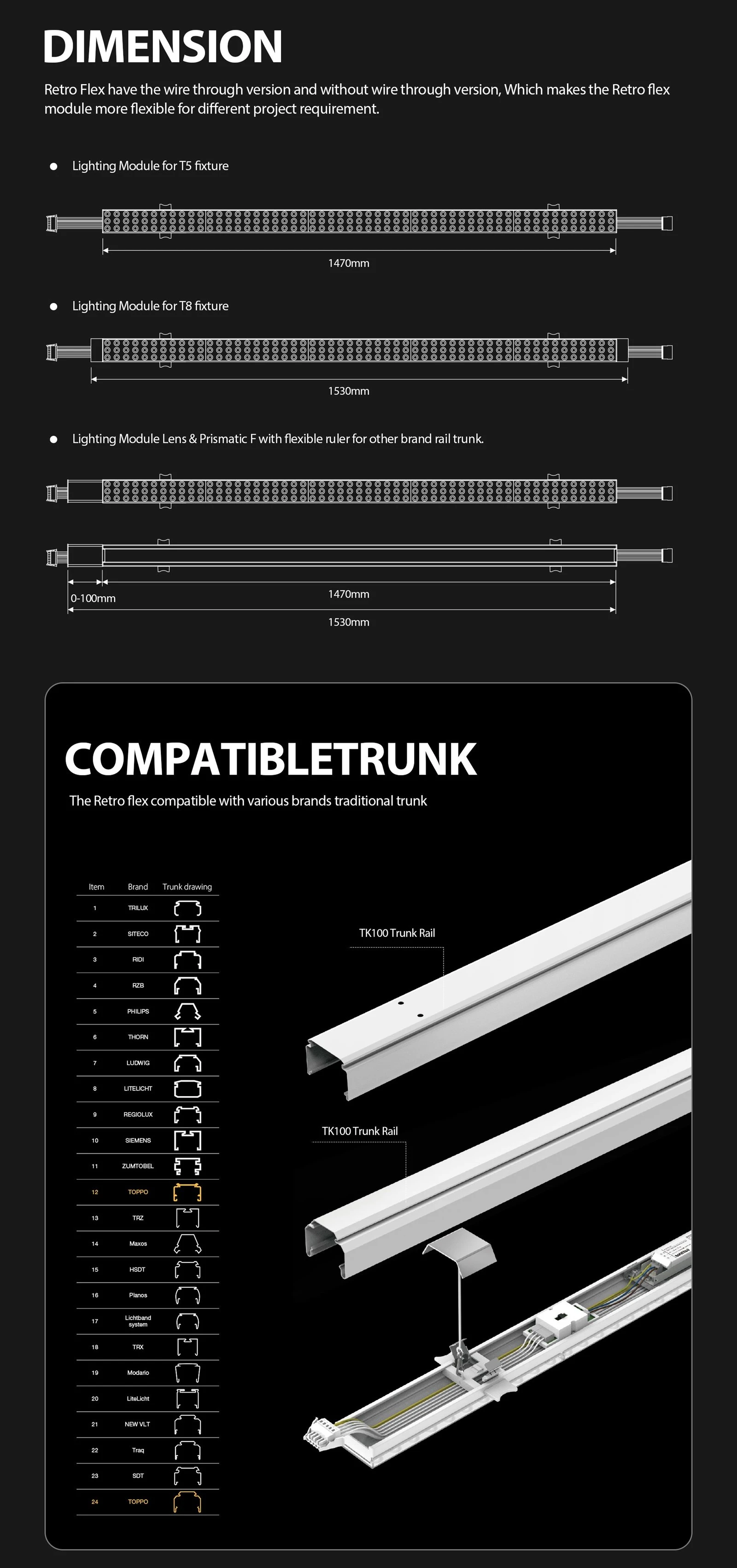

L1470 / 1530XW65XH34 |
14.5kg |
6pc |
|
Lens optique |
RF100 - 05W-DT1-60F01 |
40-60W |
Ubwoko.180 |
Ubwoko.7200-10800 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470 / 1530XW65XH34 |
14.5kg |
6pc |
|
Lens optique |
RF100 - 05W-DT1-70V01 |
50-70W |
Ubwoko.180 |
Ubwoko.9000-12600 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470 / 1530XW65XH34 |
14.5kg |
6pc |
|
Lens optique |
RF100 - 05W-DT1-75D01 |
20-75W |
Ubwoko.180 |
Ubwoko.4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470 / 1530XW65XH34 |
14.5kg |
6pc |
|
Lens optique |
RF100 - 05W-DT1-70D01 |
35-70W |
Ubwoko.180 |
Ubwoko.6300-12600 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470 / 1530XW65XH34 |
14.5kg |
6pc |
|
Lens optique |
RF100 - 05W-DT1-75F01 |
35-75W |
Ubwoko.180 |
Ubwoko.6300-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470 / 1530XW65XH34 |
14.5kg |
6pc |
|
Prismatic optique F. |
RF130 - 05W-DT1-75F01 |
20-75W |
Ubwoko.180 |
Ubwoko.4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470 / 1530XW65XH39 |
14.5kg |
6pc |
|
Prismatic optique F. |
RF130 - 05W-DT1-60F01 |
40-60W |
Ubwoko.180 |
Ubwoko.7200-10800 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470 / 1530XW65XH39 |
14.5kg |
6pc |
|
Prismatic optique F. |
RF130 - 05W-DT1-75D01 |
20-75W |
Ubwoko.180 |
Ubwoko.4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470 / 1530XW65XH39 |
14.5kg |
6pc |
|
Prismatic optique F. |
RF130 - 05W-DT1-70D01 |
35-70W |
Ubwoko.180 |
Ubwoko.6300-12600 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470 / 1530XW65XH39 |
14.5kg |
6pc |
|
Prismatic optique F. |
RF130 - 05W-DT1-75F01 |
35-75W |
Ubwoko.180 |
Ubwoko.6300-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470 / 1530XW65XH39 |
14.5kg |
6pc |
|

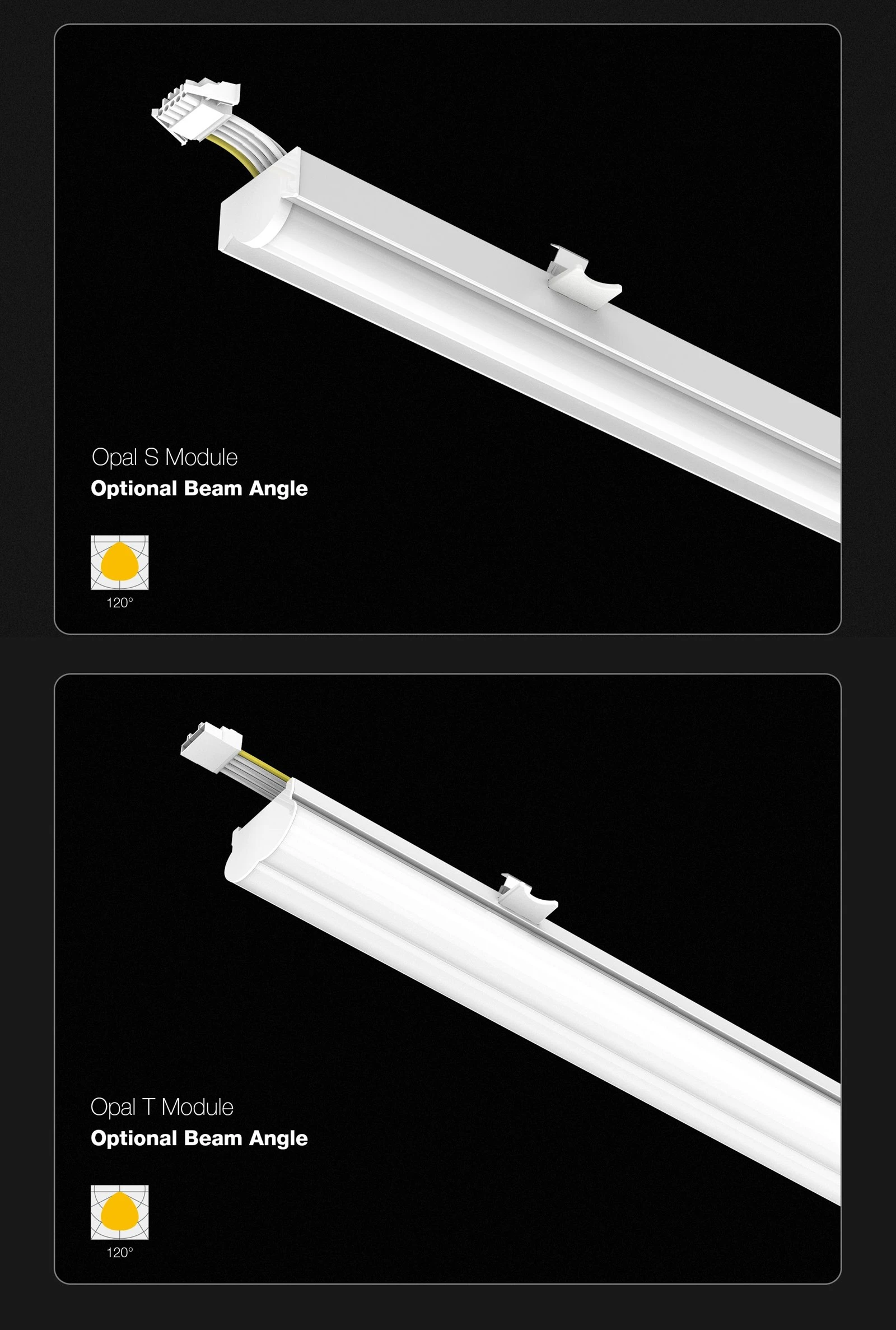

Opal T8 |
RF160 - 05W-DT1-75F01 |
20-75W |
Ubwoko.180 |
Ubwoko.4500-13500 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470 / 1530XW65XH36 |
14.5kg |
6pc |
|
Opal T8 |
RF160 - 05W-DT1-60F01 |
40-60W |
Ubwoko.180 |
Ubwoko.7200-10800 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470 / 1530XW65XH36 |
14.5kg |
6pc |
|
Opal T8 |
RF160 - 05W-DT1-70V01 |
50-70W |
Ubwoko.180 |
Ubwoko.9000-12600 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470 / 1530XW65XH36 |
14.5kg |
6pc |
|
Opal T8 |
RF160 - 05W-DT1-75D01 |
20-75W |
Ubwoko.180 |
Ubwoko.4500-13500 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470 / 1530XW65XH36 |
14.5kg |
6pc |
|
Opal T8 |
RF160 - 05W-DT1-70D01 |
35-70W |
Ubwoko.180 |
Ubwoko.6300-12600 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470 / 1530XW65XH36 |
14.5kg |
6pc |
|
Opal T8 |
RF160 - 05W-DT1-75F01 |
35-75W |
Ubwoko.180 |
Ubwoko.6300-13500 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470 / 1530XW65XH36 |
14.5kg |
6pc |
