Intangiriro
Abaguzi bamurika kijyambere, uhereye kubafite amazu kugeza kubayobozi b'ibigo, ubu shakisha ibikoresho bihuza nibyo bakeneye, bizigama ingufu, kandi bitange ihumure. Muburyo butandukanye bwo guhitamo muriyi nzira ni dimmableLED amatara, tubikesha ubwiza buhebuje, gukora neza, hamwe no kumurika.
Muri iki gitabo, twahisemo Top 5 Dimmable LED Batten Itara ryibiro ningo muri 2025, dusuzuma imikorere yabyo, kubaka ubuziranenge, hamwe nuburyo bwo kugenzura. Uzamenya kandi uburyo LED dimming ikora nibisobanuro byingenzi mbere yo kugura. Reka dutangire!

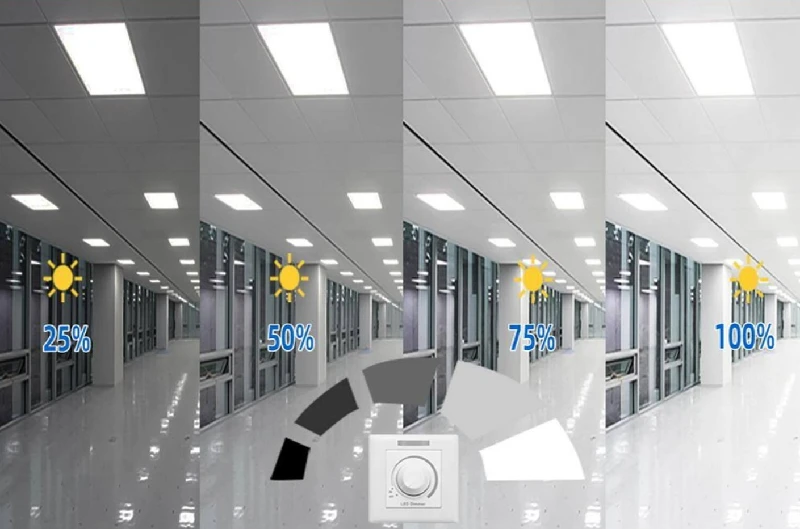

Nigute Dimming ikora mumatara ya LED?
Kugabanuka mu bikoresho bya LED ntabwo ari ukugabanya umucyo gusa, ahubwo ni no kugenzura ubugari bwa pulse na pulse kugirango ugere ku kuzigama ingufu no guhuza n'imihindagurikire. Reka tubice muri make:
-
0-10V Kugabanuka
-
DALI Dimming
-
Triac / Icyiciro - Kata Dimming
-
Flicker - Abashoferi b'ubuntu

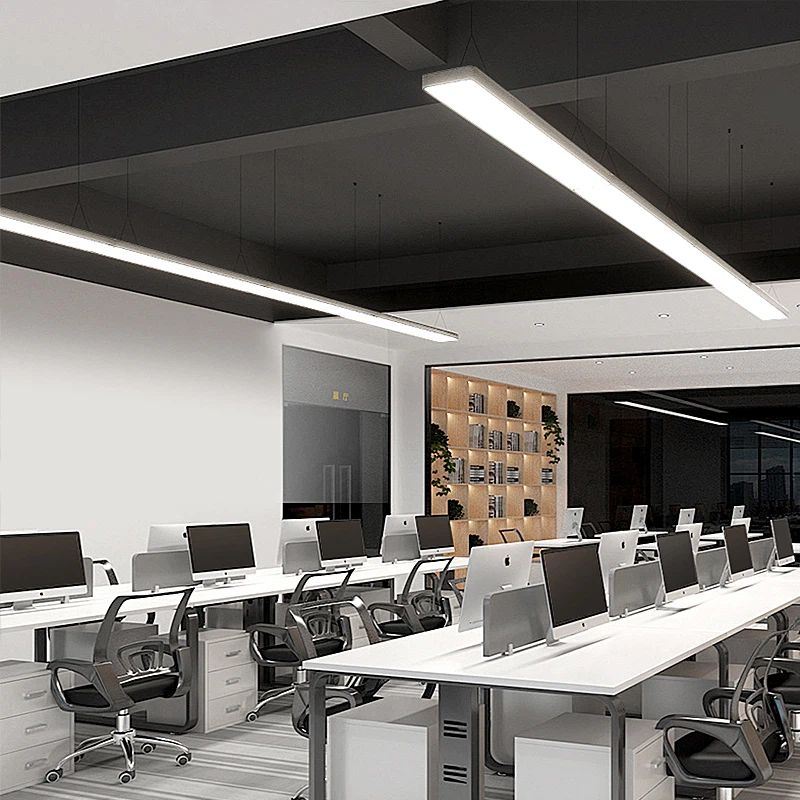

Kuki Abaguzi Bahitamo Itara Rimurika rya LED Batten?
Itara rikeye ritanga imbaraga nyinshi zo kuzigama, kandi rihindura uburyo urumuri rukorana n'umwanya unyuze:
(1) Gukoresha ingufu:Mugabanye gukoresha ingufu mugihe umucyo wuzuye udakenewe.
(2) Ihumure rigaragara:Hindura umucyo kugirango ugabanye urumuri, umunaniro, hamwe n'amaso.
(3) Igenzura ryubwenge ryiteguye:Bihujwe na sisitemu yo gukoresha na sensor.
(4) Kuzamura ibidukikije:Ubudozi bwumucyo mubihe bitandukanye byumunsi cyangwa ibihe.
(5) Uburebure - Kuzigama igihe:Imyanda mike yingufu hamwe nigihe kirekire cya LED bisobanura amafaranga make yo kubungabunga.
Top 5 Dimmable LED Batten Itara muri 2025
Philips LED UmushingaLine Byose - muri - Igice kimwe Batten 40/33 / 29W
UmushingaLine Strip Batten numurongo wa LED urumuri ruvuye muri Philips rutanga urumuri rwinshi mumurongo umwe, rugenzurwa numucyo uhari. Urwego ruhinduranya imbaraga hamwe nigishushanyo gisukuye bituma ucomeka - na - gukina kuzamura kugirango byihuse.
Ibintu by'ingenzi:
• Wattage yatoranijwe:29W / 33W / 40W amahitamo asohoka.
• Kumurika neza:kugeza kuri 120 lm / W, gutanga urumuri rwinshi kandi rumwe.
Ubushyuhe bw'amabara:4000K idafite aho ibogamiye (nibyiza kubiro).
• Dimming:Bihujwe na sisitemu yo gucana 0-10V.
• Ubwubatsi:Kwinjizamo LED hamwe na aluminiyumu ikomeye hamwe na opal diffuser.
• Kwinjiza:Koresha clips ihuriweho na screw - kwishyiriraho ubuntu kandi ifite umuhuza wa GU10 kubintu byoroshye.
Ibyiza kuri:
Ibiro, igaraje, amahugurwa, hamwe nubutaka.
Panasonic LED Tri Ibara Batten
Panasonic LED Tri Ibara Batten, igisubizo cyinshi cyo kumurika gihuza nikintu icyo aricyo cyose. Iyemerera abakoresha guhinduranya amajwi ashyushye, adafite aho abogamiye, cyangwa kumanywa yumucyo ukoresheje - muburyo bwo guhinduranya, kubitekerezo bifuza umwanya.
Ibintu by'ingenzi:
• Tri - ibara CCT ishobora guhinduka: 3000K / 4000K / 6500K.
• Gukora neza cyane:~ 110 lm / W.
• Amahitamo y'imbaraga:Biboneka muri 18W / 36W.
• Kugabanya guhuza:Shyigikira Triac dimming.
• Kubaka:Slimline Polyakarubone Inzu ya Polyakarubone ifite urumuri - diffuser yubusa.
• Umutekano:Iza hamwe no kurinda umutekano, kubahiriza umutekano nka Biro yubuziranenge bwu Buhinde (BIS).
Ibyiza Kuri:
Amazu, resitora, n'ibiro bikenera amatara yoroheje.
Kumurika Hejuru Kaston UGR Batten Umucyo 200mm
UwitekaKaston UGRyubatswe kumurika kumwuga, gutanga urumuri rworoshye, urumuri - kumurika kubuntu, no guhuza modular. Amazu ya aluminiyumu atanga ubushyuhe bwiza cyane, mugihe prismatic diffuser iha abakoresha urumuri ruke rwibidukikije.
Ibintu by'ingenzi:
• Ihumure rigaragara:UGR<19 glare control, flicker-free driver.
• Uburyo bwinshi bwo gucana:0-10V, DALI.
Urwego rw'ingufu:30/30/35/40 W, Imikorere igera kuri 140 lm / W.
Urwego rwa CCT: 3500K–6800K.
• Uburyo bwo gushiraho:Ubuso, bwahagaritswe, cyangwa guhuza.
• Inyongera ku bushake:Icyerekezo cyimikorere, kugarura byihutirwa, cyangwa guhuza DALI.
Ibyiza Kuri:
Ibiro, ibyumba by’ishuri, ibigo nderabuzima, na sitidiyo.
TUBU IP66 LED Batten Umucyo L10-S Urutonde Pro
TUBU IP66 LED Batten Mucyo L10 - S Series Pro ni flicker - yubusa, ikoresha ingufu zumucyo LED urumuri rwagenewe ibidukikije bikaze. Irimo igipimo cya IP66 cyo kurinda ivumbi n’amazi hamwe na IK10 yo kurwanya ingaruka.
Ibintu by'ingenzi:
• Imbaraga zatoranijwe & CCT:18W - 60W, 2700K kugeza 6500K.
• Ingaruka:Kugera kuri 185Lm / W.
• Amahitamo yerekana:0-10V cyangwa DALI dimming.
• Umushoferi:Kwigunga, guhindagurika - kubuntu na SAA, CE, na RoHS byemewe.
• Ibikoresho:Umubiri wa aluminium hamwe na PC diffuser, anti - gutwika.
• Imirimo y'inyongera:Microwave sensor & verisiyo yihutirwa irahari.
• Kwinjiza:Emerera kugororoka - ukoresheje insinga hamwe namahitamo ya 5x2.5mm² kandi ikubiyemo umugozi wumutekano.
Ibyiza Kuri:
Ibiro, Ububiko, parikingi, tunel, ububiko bukonje.
Osram SubstiTUBE T8 Icyerekezo Sensor Dimmable Batten
Icyuma cyerekana SubstiTube T8 cyemerera gusimbuza byihuse, byoroshye, kandi umutekano wamatara ya fluorescent utarinze kwifashisha ibikoresho bisanzwe bigenzura (CCG). Uyu muyoboro wa LED urimo sensor ya microwave ikomatanya hamwe no kumenya icyerekezo, ikiza kugeza 90% mu kuzigama ingufu.
Ibintu by'ingenzi:
• Ihumure rigaragara:UGR<19 glare control, flicker-free driver ensures eye-friendly illumination.
• Uburyo bwinshi bwo gucana:0-10V, DALI, nubushake butari - moderi zidasanzwe.
Urwego rw'ingufu:25/30/35/40 W, efficacy igera kuri 140 lm / W.
Urwego rwa CCT:3500K - 6800K (ashyushye kugirango akonje yera).
• Uburyo bwo gushiraho:Ubuso, bwahagaritswe, cyangwa guhuza kwishyiriraho imiterere ihinduka.
• Inyongera ku bushake:Icyerekezo cyimikorere, gusubira inyuma byihutirwa, cyangwa sisitemu ya DALI.
Ibyiza Kuri:
Ibiro, ibyumba by’ishuri, ibigo nderabuzima, na sitidiyo.
Imbonerahamwe Yagereranijwe Byihuse
|
Ikirango |
Icyitegererezo |
Urwego rwa Wattage |
Ingaruka |
Urwego rwa CCT |
Dimming |
Ikintu cy'ingenzi |
Urubuga rwemewe |
|
|
LED UmushingaLine Byose - muri - Igice kimwe |
29–40W |
Kugera kuri 120 lm / W. |
4000K |
0–10V |
Igenamigambi ryinshi ryamashanyarazi, funga - na - gukina |
|
|
|
LED Tri Ibara Batten |
18–36W |
~ 110 lm / W. |
3000K / 4000K / 6500K |
Triac |
Tri - ibara CCT ishobora guhinduka, urumuri ruto - diffuser yubusa |
|
|
|
Kaston UGR Batten Umucyo 200mm |
25–40W |
Kugera kuri 140 lm / W. |
3500K–6800K |
0-10V / DALI |
UGR<19, flicker-free, optional motion/emergency/DALI |
|
|
|
IP66 LED Batten L10-S Urukurikirane Pro |
18–60W |
Kugera kuri 185 lm / W. |
2700K–6500K |
0-10V / DALI |
IP66 & IK10, sensor ya microwave & byihutirwa, gukora neza |
|
|
|
SubstiTUBE T8 Icyerekezo Sensor Dimmable Batten |
25–40W |
Kugera kuri 140 lm / W. |
3500K–6800K |
0-10V / DALI |
Icyerekezo cyimikorere, flicker - kubuntu, byoroshye guhinduka |
Nigute ushobora guhitamo urumuri rwiza rwa LED rutara?
Mugihe uhisemo urumuri rutagaragara, ibintu bike byemeza ko ubona neza ibyo ukeneye:
(1) Ubucyo (lm / W):Reba uburyo bwiza bwo kumurika, mubisanzwe hejuru ya 110 lm / W kugirango ugabanye ibiciro byingufu.
(2) Kumurika (UGR):Kuribiro cyangwa aho biga, hitamo igishushanyo cya UGR kugirango ugabanye umunaniro ugaragara. UGR<19 batten fixtures (like Toppo Kaston) are popular for that.
(3) Ubwoko bwo Kwishyiriraho:Hitamo niba ubuso - bwashizweho, busubirwamo, cyangwa bwahagaritswe kwishyiriraho imiterere yawe.
(4) Kugereranya guhuza:Kugenzura inkunga ya 0-10V, DALI, cyangwa Triac dimming, bitewe na sisitemu yo kugenzura.
(5) Garanti & Impamyabumenyi:Menya neza ko ibicuruzwa byawe byujuje ubuziranenge nka CE na RoHS. Wige byinshi mu ngingo yacu irambuye:Impamyabumenyi Zingenzi zo Gushakisha Iyo Gutumiza Amatara LED.
(6) Ibidukikije bikwiranye:Kubice bitose cyangwa inganda, hitamo moderi ya IP65 / IP66.
Muri make, urumuri rwinshi rwa LED rwerekana urumuri rwinshi rwo hejuru, urumuri ruke, hamwe no kugenzura gucana burigihe bikora neza hamwe no kumurika neza kuruta ibisanzwe.
Ibibazo
Ikibazo: Amatara yose ya LED yatwitse?
Igisubizo: Oya, ntabwo moderi zose zidashoboka. Buri gihe urebe niba ibicuruzwa bishyigikira 0-10V, DALI, cyangwa TRIAC gucogora mbere yo kugura.
Ikibazo: Ni ubuhe bushyuhe bwiza bwamabara yo kumurika ibiro?
Igisubizo: Ijwi ryera ridafite aho ribogamiye (hafi 4000K) ritanga umucyo uringaniye kandi rigabanya uburibwe bwamaso, bigatuma biba byiza kubiro no mubyumba by'ishuri.
Ikibazo: Nshobora guhitamo wattage cyangwa CCT kumushinga wanjye?
Igisubizo: Rwose! Uruganda rwinshi rwumucyo nka Toppo Lighting rutanga wattage yihariye hamwe na CCT, kugirango uhuze igishushanyo cyihariye cyo kumurika cyangwa intego yibiciro byingufu.
Umwanzuro
Kuva kuri Philips 'Guhindura UmushingaLine kugeza Toppo Lighting's UGR - yemejwe na Kaston Light, hariho igisubizo kuri buri mwanya, haba gutura, ubucuruzi, cyangwa inganda. Niba uteganya kugurisha cyangwa kugurisha amatara ya LED yamashanyarazi, menya imikorere yabo yo gucana nkuko ubishaka, kandi ukurikize ibipimo mumasoko yagenewe kugirango wirinde gutinda kumushinga.
Shaka ubufasha bwinzobere kubikorwa bya LED Batten
Nkurumuri rwa LED rumurika kandi rutanga igisubizo, waba uzamura ibiro / amatara yo murugo, cyangwa isoko rya OEM / ODM, Itara rya Toppo ritanga - kuri - kugisha inama no kugurisha ibicuruzwa.Vugana n'ikipe yacu uyu munsikubitekerezo byihuse cyangwa inama zisobanutse.
